turbo ms43 330i build list

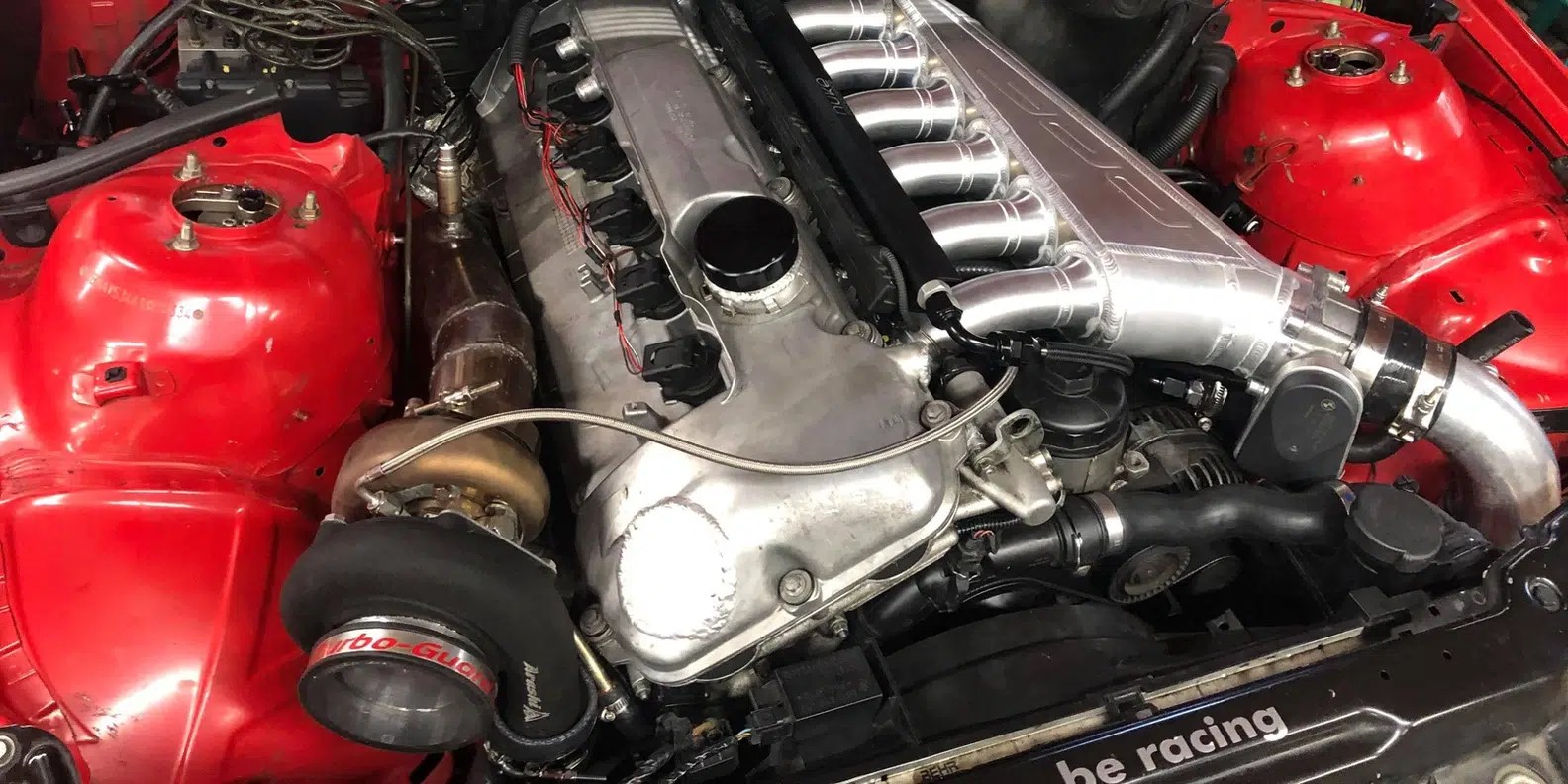

This e46 has been with us since the beginning. We tuned this car as its second tuner, starting from 42lb injectors, a stock maf and a base cx kit, gradually updating and increasing power goals. While the m54b30 in this car was running well, the excitement of this built iron engine motivated its swap into this car. This setup regularly operates at 20psi on e85 for full cycle use and has seen plenty more. We’re excited to see what it can do as we slowly increase the boost.

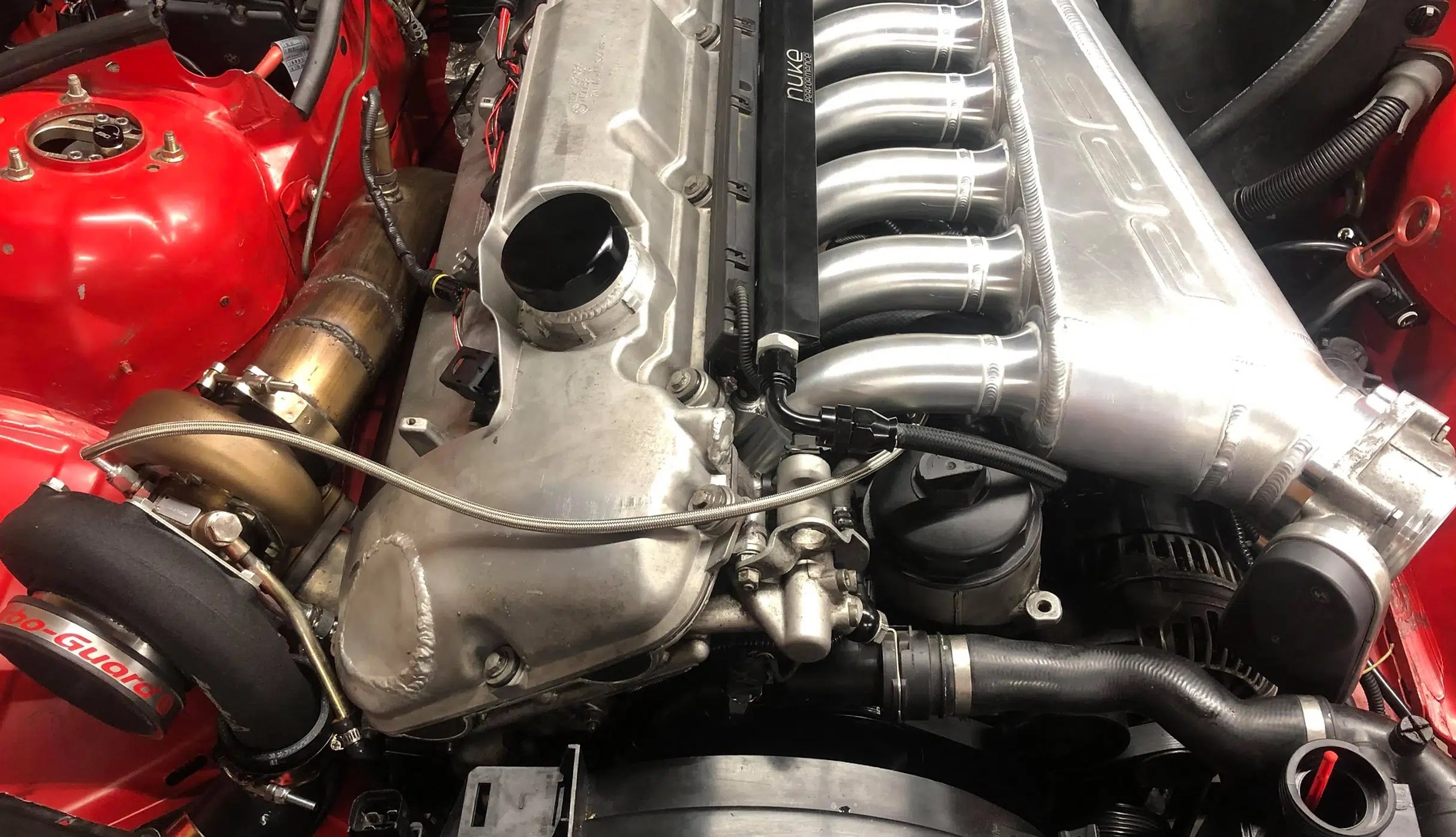

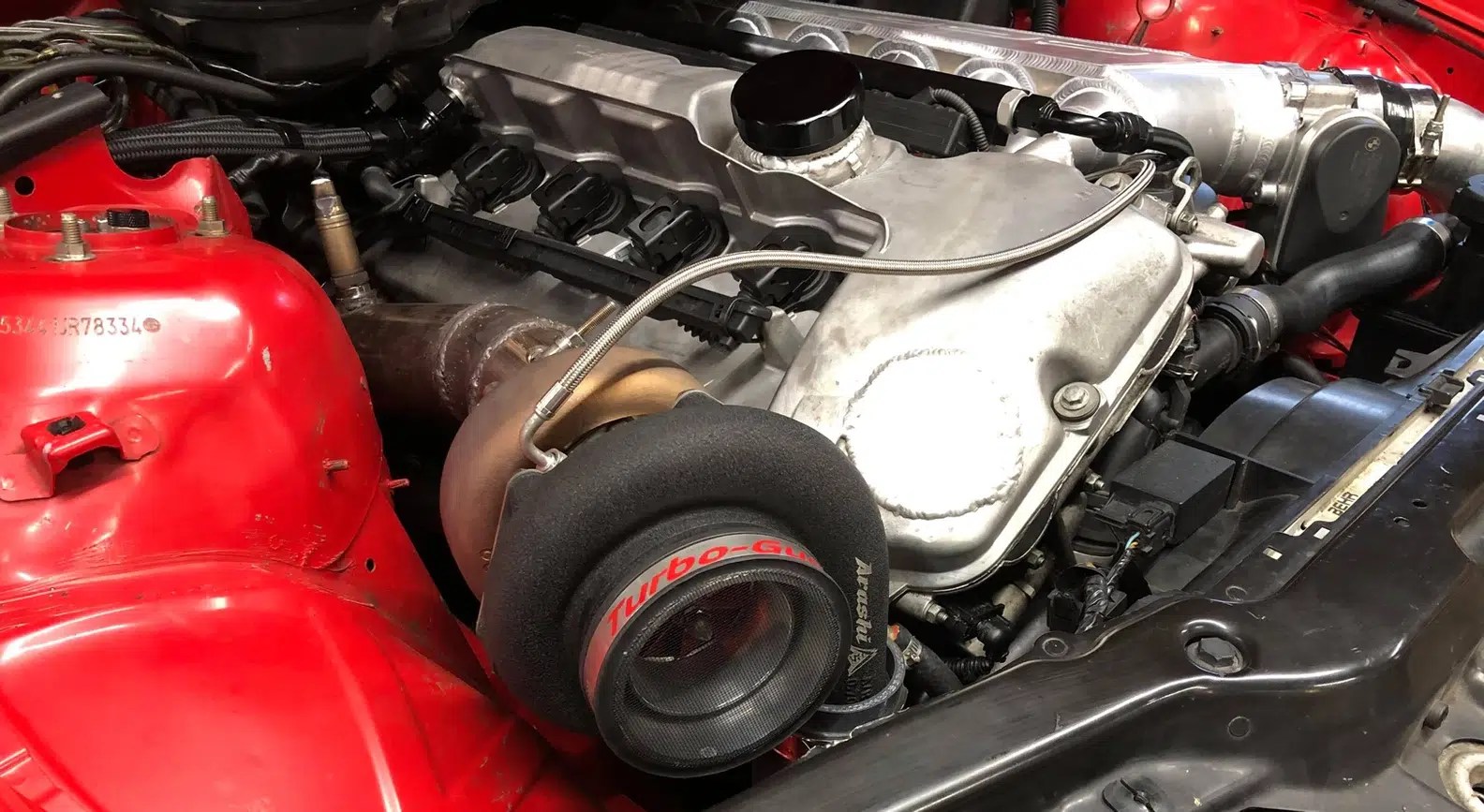

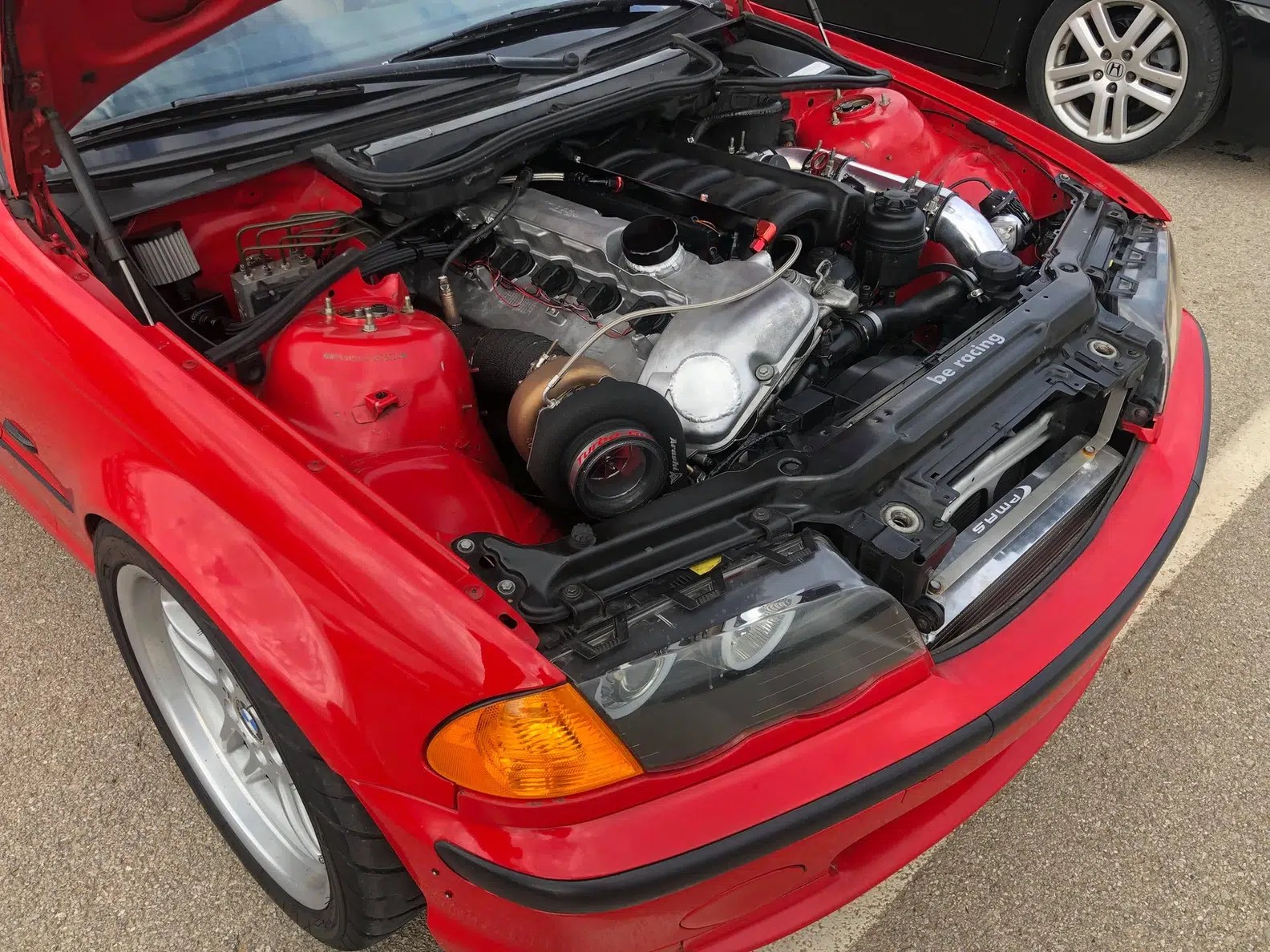

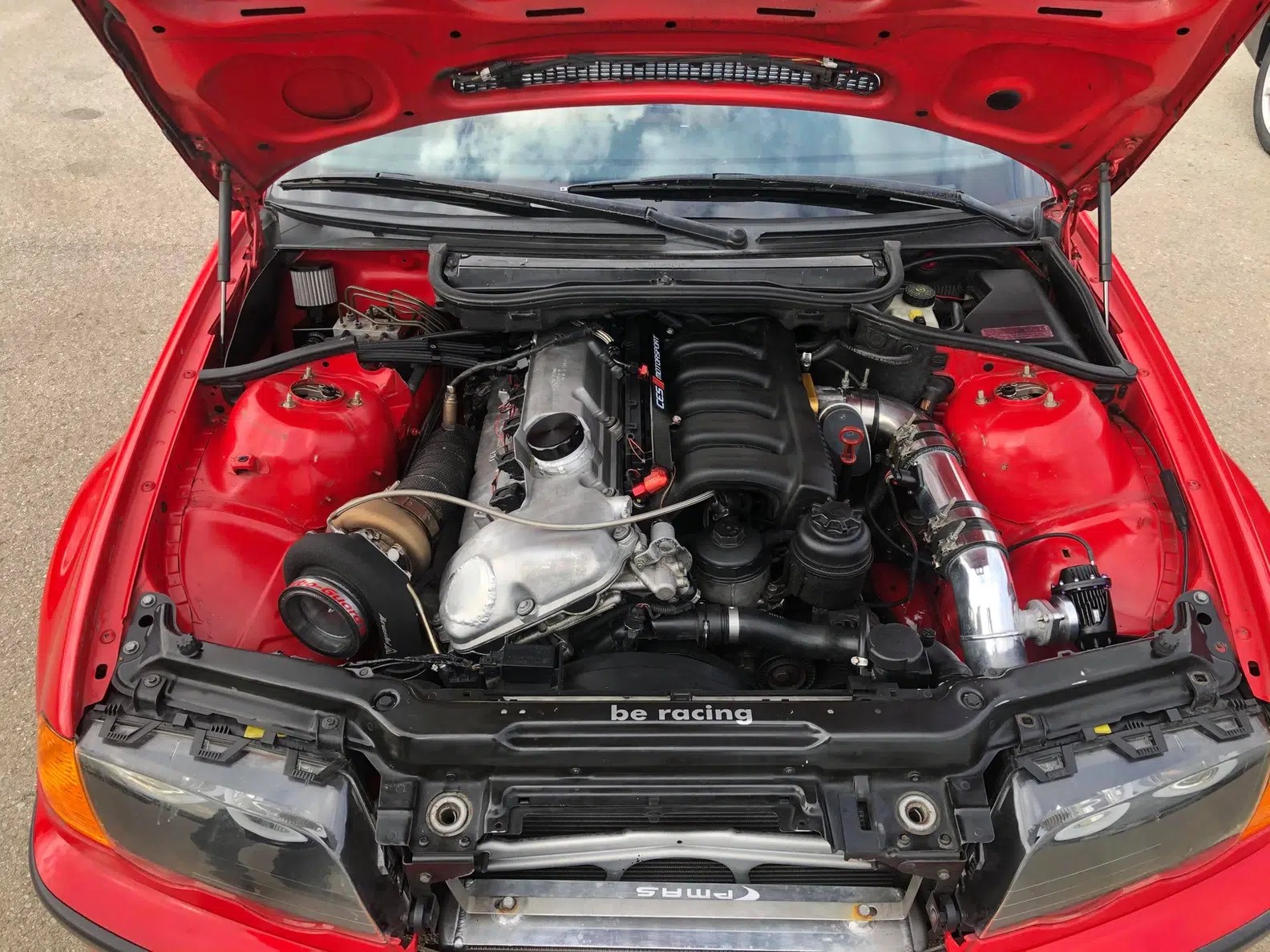

| Engine |
- HPX MAF
- BRT Bosch 100lb injector set
- be racing tuning ms43 turbo tune
- cx racing manifold
- Treadstone 1245 intercooler
- HKS ssqv blow-off valve
- TiAL 38mm 2 bolt wastegate
- 3584 gen 2 arashi turbo, 1.06 turbine a/r
- m52 iron block, single vanos head converted to dual vanos
- Paul Burke/Sandor/Diamond pistons, 9.5:1 compression
- zhp cams
- m56 valve cover with inlet moved
- maxpeedingrods rods
- athena 87mm 2mm (0.078″) hg

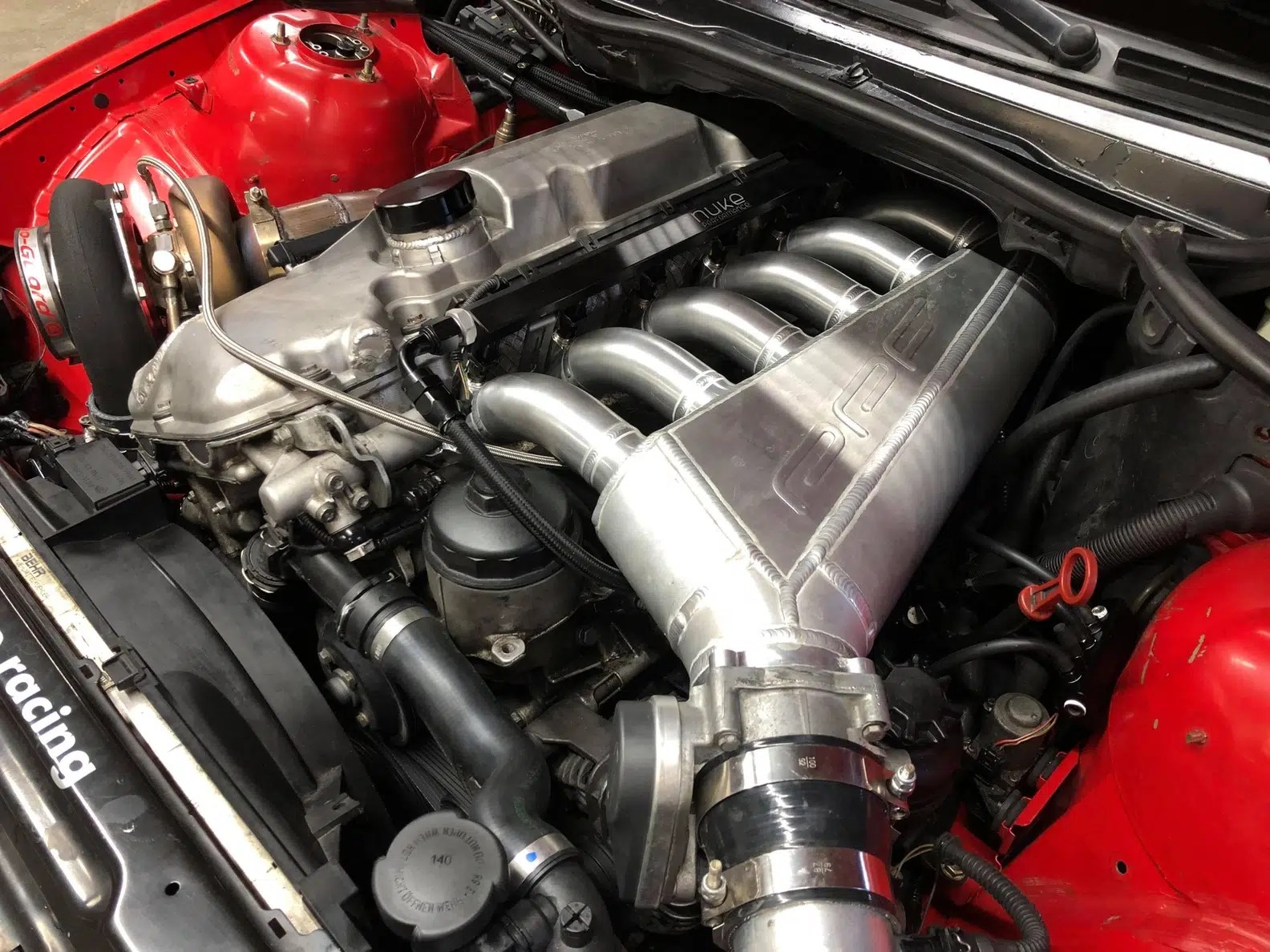

- PPF Intake Manifold
- large n62 throttle body
- innovate boost and wideband (psb1)
- Greddy profec B boost controller
- fx racing stage 4 clutch w/ steel chromoly flywheel
| Chassis |
- m-parallel style 37 wheels
- hard motorsports rivet-on flares
- bc coilovers
- seems legit garage diff mount
